What is Fiberplast Concrete®?

It is defined as a structural synthetic macrofiber, whose composition of polypropylene and high-resistance polymers, has the appropriate properties for high tension, which self-anchor when incorporated into the concrete mix, technically used to replace metal fibers and electro welded mesh in a wide variety of on-site applications, giving it excellent specifications at a lower cost. in concrete and by elastic deformation in the service stage.

Fiberplast Concrete® is a structural synthetic macrofiber, manufactured under International Standard ASTMC-1116-10 Type 3 and Colombian Standard ICONTEC NTC 5541 and NSR-10. It is designed to be easily involved in concrete, improving its properties, replacing electro- welded mesh and metal fibers, being a structural reinforcement fiber for concrete.

Benefits to use Fiberplast Concrete®

Replaces Electrowelded Mesh
SAVINGS OF OVER 50% compared to electro-welded mesh
With 4 mallets yields: 3,2ft of 3,2”cm concrete plate thickness
Reduces the carbon footprint in the environment and concrete works
Increased flexural toughness in compliance with ASTM international standards.

Greater fire resistance compared to other synthetic fibers.
It works three-dimensionally in the concrete, reducing stresses and stresses due to thermal expansion
Reduces wear on hoses, pumps, tops and mixers
Improves the properties of concrete floors and between floors
And More Benefits

Comparative for a 1600 ft2 floor with a thickness of 4 inch

This is a comparison of use between Fiberplast Concrete® and traditional electro-welded mesh. In addition to reducing purchase costs, transportation, storage, and application are facilitated, and concrete properties are improved when using Fibraplast Concrete®.

Durability
Add Your Tooltip Text Here
Resistance
Add Your Tooltip Text Here
Reinforcement
Add Your Tooltip Text Here
Cracking
Add Your Tooltip Text Here

Characteristic	Fiberplast Concrete® Dosage of 5.4 lb/cy	Welded Mesh 4mm thick / 2.35mx 6m
Presentation	2 boxes of 53 lbs	12 meshes
Saving	54%	0%
Product weight	48kg	226kg
Waste	0%	20% minimum
Transport	1 motorbike	1 truck
Storage	Reduced by up to 80%	Takes up too much space
Application time	7 hours	12 hours
Final Resistance of the Plate	150%	80%
Use of spacers	NOT	YEAH
Cracking	Reduces by 80%	Reduce by 20%
Reinforcement Type	Three dimensional	A single plane
Durability	Never rust	It rusts in 1 week
Ease of Management	High	Under
Risks	Neither	High

Main Uses

Pre Manufactured Concrete

Floors of Concrete

Rigid Pavements

Tunnels

Slabs of Concrete

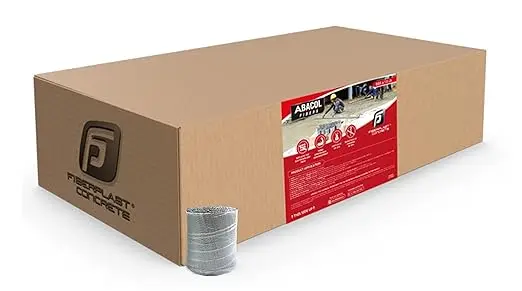

What comes in a 50 pound box of Fiberplas Concrete®?

What’s in the box?

The presentation of Fiberplast Concrete®, can be found in bundles of 0.31 lbs (140 gr approx).

Each Fiberplast Concrete® deck comes in boxes of 9.5in x 19in x 12.5in, each box weighs 50 lbs, contains 155 to 160 decks per box.

How to use Fiberplas Concrete®?

Fiberplast Concrete®, has the ability to give your concrete a multidirectional reinforcement resulting in increased flexural strength, tenacity to efforts, impact resistance and abrasion, to reduce the formation of cracks due to plastic contraction.

The following explains in a general terms, the dosage of Fiberplast Concrete®, but each project will have a different dosage which will have the advice from the technical department.

Shovel Method

Water/ Stone/ Sand + Gray Cement Bulk + 4 decks Fiberplast Concrete® + Good dispersion while concrete is fluid = Macro Reinforced Concrete

Portable Concrete Mixer Method

Water/ Stone/ Sand + Gray Cement Bulk + 4 decks Fiberplast Concrete® + Good dispersion while concrete is fluid = Macro Reinforced Concrete

Mixer Truck Method

Ready mixed concrete + Mixer top at full speed + 21 decks Fiberplast Concrete® x Lb/Yd3 of Concrete + 5 minutes on site = Macro Reinforced Concrete

Technical specifications

Concept	Worth
Average Diameter	0.025in
Microfiber Type	Synthetic
Length	2.17in
Fibers x KG Average	16.600
Frequent Dosing	5.0 to 10.0 lb/cy
Fibers per cy (Average Dosage)	86.400
Specific Gravity	1.27g/cm³
Maximum Tensile Strength	76 KSI
Average Modulus of Elasticity	6.960 KSI
Surface Texture	Maximum Anchorage Marking

Concept	Worth
Melting point	500º F
Melting point	YEAH
Aspect Ratio	92
Colour	Characteristic
Absorption	null
Resistance to acid salts	high
Alkali Resistance	High
Resistance to Mono-fungi	High
Electric Conductivity	Short
Thermal Conductivity	Short

How To Buy

Morbi condimentum elit quis nunc sodales rhoncus id at arcu. Nam suscipit, neque sit amet congue pellentesque, libero elit accumsan lacus, eu gravida purus magna in dui. Nam placerat, lectus quis interdum malesuada, quam urna elementum ligula, non rutrum massa quam in dolor. Vestibulum efficitur blandit dolor, sed placerat neque ornare et. Nunc orci eros, egestas egestas pulvinar a

Shop Now

+
0

Cubic yards of concrete

+
0

Years of experience

+
0

Tons sold

+
0

Users

Who is the manufacturer of Fiberplast concrete®?

ABACOL is a very prestigious company in the sector, with 30 years of experience in the manufacture and commercialization of specialized construction products, is linked to the country’s progress by contributing to the development of Fiberplast Concrete®, an innovative solution of the best quality, being classified as a polymeric synthetic macro fiber used to reduce cracks, replacement of electro-welded mesh, used to control plastic shrinkage due to temperature changes in the setting of concrete, secondary or primary reinforcement and special complement for the behavior of concrete.
